Cargo Aircraft Details

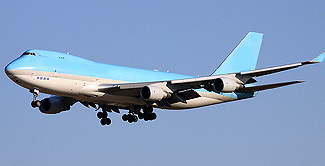

Boeing B747-400F, B747F Charter

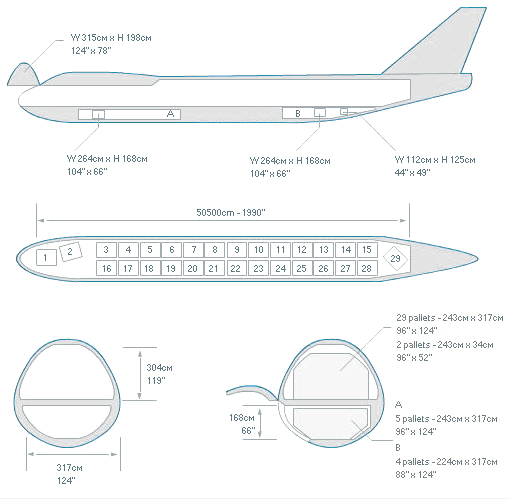

Cargo Cabin Details - Boeing B747-400F




Length 70,70 meter
Wingspan 64,40 meter
Height 19,40 meter
Cruising speed 920 km per hour
Max altitude 13.700 meter
Max take-off weight 396.900 kgs
Max gross payload 113.000 kgs
Range (Max payload) 11.380 kms
Length 56,40 meter
Max width 5,90 meter
Height 3,05 meter
Capacity 610,00 cubic meter / main deck
130,00 cubic meter / lower decks
Nose cargo door 318 × 249 cms / width x height
Rear cargo door N/A
Side cargo door 340 × 312 cms / width x height
Lower cargo door 270 × 168 cms / width x height
Paylaod 113.000 kgs
Main deck 610,00 cubic meter
Belly volume 130,00 cubic meter
Pallets main deck 29 pallets, 244 × 318 cms
Pallets belly 32 LD-1 container
